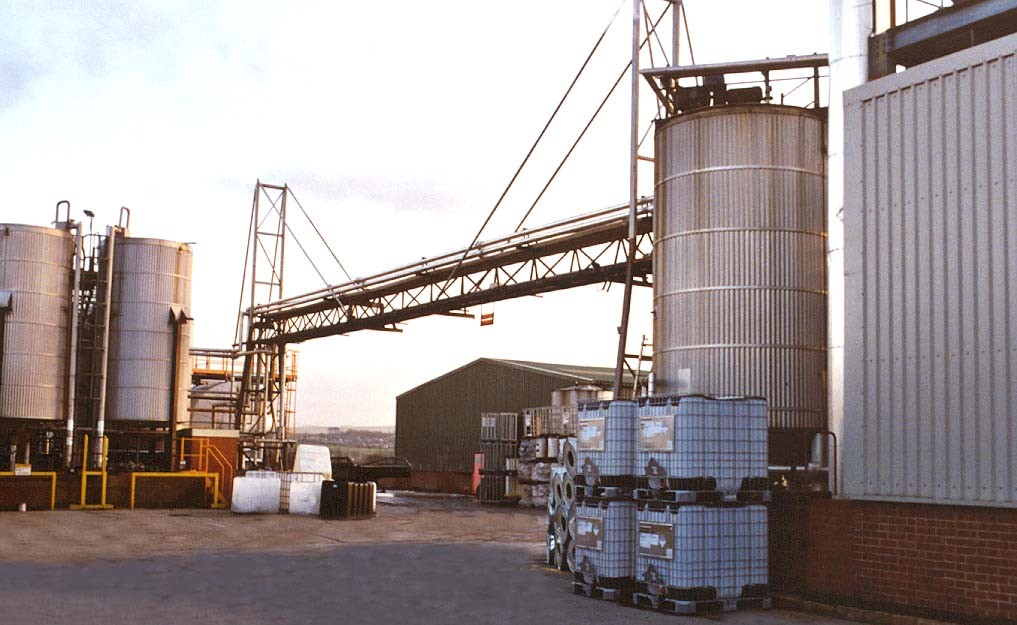

EKA Chemicals Ltd, in Blackburn, Lancashire, have used High Efficiency Clayton Steam Generators since 1984.
Their current steam requirement is met by a Clayton Model EG-304-3 Steam Generator which supplies high quality steam to essential batch processes in different parts of the plant.
The Blackburn factory is part of the Paper Chemicals Division of EKA Chemicals Ltd and supplies the world’s paper industry with chemicals, used mainly in the wet end section of paper manufacturing, such as sizing agents, drainage aids, retention aids or tissue softeners. Sizing agents improve paper quality and performance on printing machines and are manufactured from rosin or synthetic wax which is treated in a number of different ways.
Steam is a vital part of the manufacturing process. It is used at the front end of the operation to melt solid rosin and wax so that it can be pumped to treatment vessels and machinery. Steam is also used in various stages of the process to maintain correct treatment temperatures. The Clayton Steam Generator can supply 4500 kg/h steam at a pressure of up to 16 barg.
The reason for the high efficiency and rapid response of the Clayton Steam Generator is due to the once through, forced flow helical coil design. To produce steam in a Clayton Steam Generator a positive displacement diaphragm pump forces water through a single continuous coil which is heated by means of a gas or oil fired burner. A mechanical separator at the exit of the coil is then used to effectively separate the liquid and vapour to provide high quality steam which is at least 99.5% dry saturated.
The gasses from the burner pass upwards through the coil and the water being heated travels in the opposite direction in a counterflow pattern which leads to optimum heat transfer. The Clayton Steam Generator is ideal for any steam application in all industries and has been manufactured for over 90 years.
Safety has also been a major factor which has contributed to the success of the Clayton Steam Generator. Due to the relatively small amount of water contained in the steam generator it is not possible to have a steam explosion. At EKA Chemicals the Clayton Steam Generator operates fully automatically in an unmanned boilerhouse and is started by means of a time switch at around 4 am.
Terry Pike who is Company Engineer at EKA Chemical Ltd said “we rely on the Clayton Steam Generator for the total production of the plant and the rapid response is ideal for coping with our varying steam demand”
EKA Chemical Ltd are part of Akzo Nobel who is the worlds leading coatings company. Akzo Nobel is also one of the world’s leading chemical producers and has a fast growing pharmaceutical group.
Clayton is a global manufacturer of industrial steam solutions. European production and engineering have been carried out since 1961 in Bornem, Belgium, where Clayton of Belgium serves as the EMEA headquarters and main production hub for Europe, the Middle East, and Africa. The global headquarters of the Clayton Group is located in California, with additional production facilities in Mexico and Europe, and subsidiaries in France, Germany, the Netherlands, Spain, and the United Kingdom.
