Published: Dec 5, 2025
Most facilities don’t replace steam equipment simply to have a new steam boiler. Replacement usually happens because an aging firetube or water tube boiler unit occupies significant floor space, requires extensive operator attention, consumes more fuel than it should, keeps running even in weekends or nights and, simply, no longer aligns with current load profiles.
A boiler renewal offers an opportunity to reassess not only the pressure vessel, but the broader steam-system approach.
Clayton’s steam generator, forced-circulation coil design represents a different boiler configuration and operating model compared with traditional units.
A conventional firetube boiler is a pressure vessel full of water. That makes:
Clayton changes this. The heating surface is a spiral tube coil with a small internal water content, plus a high-efficiency steam separator.
The consequence is a radically smaller unit due to the low water content. This also has an impact on the safety regulations to follow.
A clayton steam generator requires minimal space, with lower weight enabling installation in constrained areas or even on upper floors.
That matters when renewing existing plants because you can:
The product range supports skid and containerized boiler houses, “turnkey solutions”, drastically reducing required installation area and time.
For renewals, that means you can:
Space takeaway: You’re not just shrinking a boiler; you’re shrinking the project: foundations, building volume, access corridors, and expansion allowances.
TCO is never one lever. It’s a bundle of small deltas that compound over 10–20 years. Clayton’s design hits several of the big ones simultaneously.
Firetubes hate cycling. They store a lot of hot water, so every shutdown is “wasted heat,” and every restart is a long warm-up that operators avoid—so the boiler sits at warm standby burning fuel.
Clayton starts from cold to full steam in about 5 minutes
and can sit on cold standby without penalty. So plants can match steam generation to actual demand curves.
Fuel logic:
Even if steady-state efficiencies were identical (they’re not), eliminating warm standby is a major annual fuel win for variable-load sites.
Clayton’s counterflow principle maximizes heat transfer between water and heat.
Because the unit is compact, radiation and convection losses are < 0.5%, improving net efficiency and reducing running cost.
Clayton separators run high TDS concentration (≈5× typical), so blowdown volume is much lower.
Documents explicitly link this to fuel, chemical, and water savings.
Cost logic:
A small once-through coil has:
Direct TCO impacts:
Because a Clayton steam generator ramps quickly and has a turndown ratio of up to 1/8 without pressure sag, process stability improves, often reducing scrap and rework in thermal processes. Rapid response is called out as inherent to forced circulation.
That’s hard to put on a brochure, but easy to see in plants that run batch or high-variance loads.

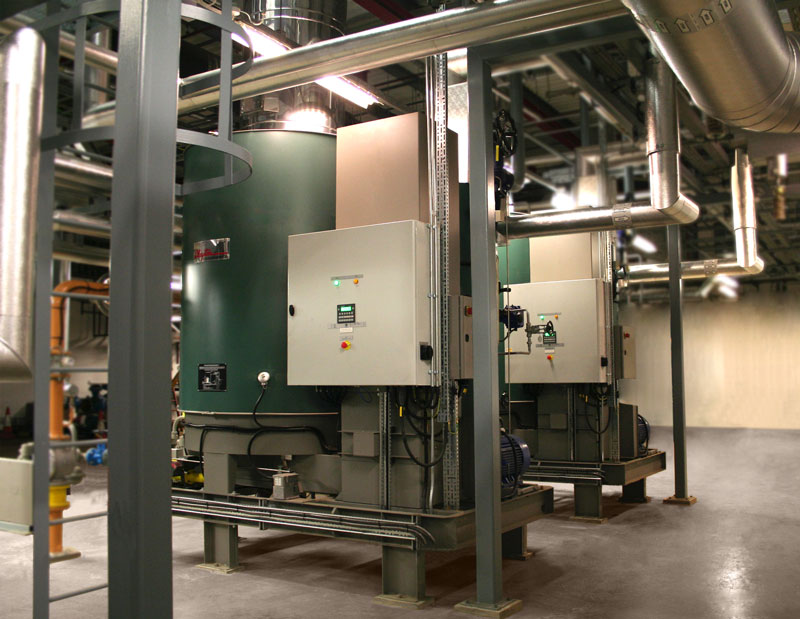

Clayton renewals shine when:
Discover more

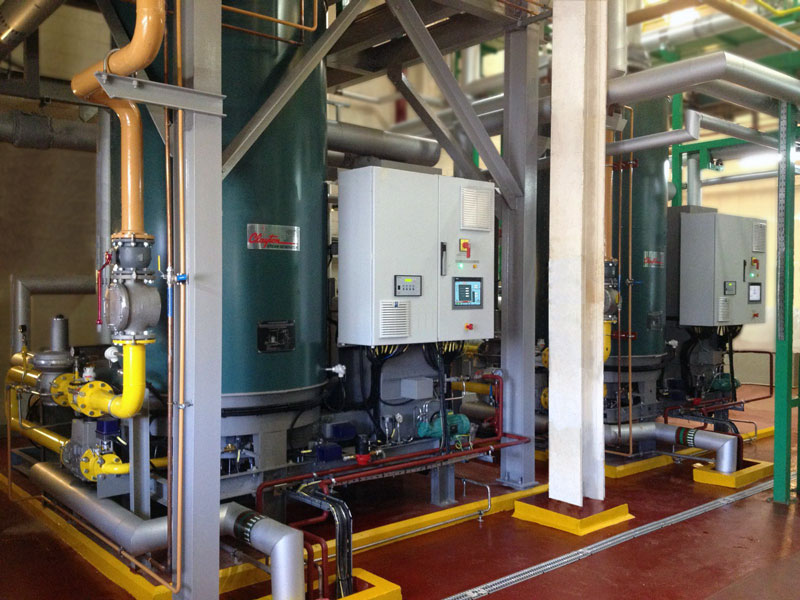

The understated win: a compact Clayton replacement can unlock future steam capacity in the same room. Add another module or hybridize later without building works.
In a renewal, that’s a hedge against:
More about our products
Renewing a legacy boiler with a Clayton system isn’t just swapping a heat source. It’s converting steam from a big, slow, space-hungry utility to a fast, modular “steam machine.”
1/3 space for same capacity due to smaller pressure boundary + light, modular packaging → reclaim plant real estate and avoid civil works.
Steam-on-demand cuts standby fuel, compactness cuts losses, ultra-low blowdown cuts water/chem spend, and simplicity cuts maintenance + labour, lead up to 30% savings.
